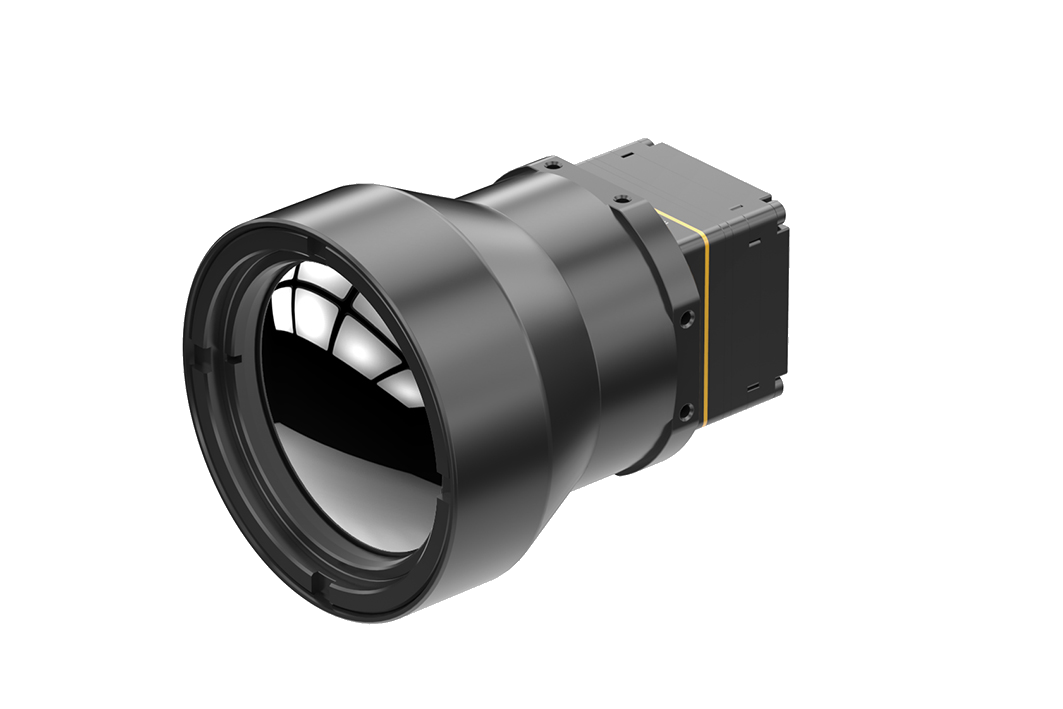

640×512 Ultra-Compact Uncooled Radiometric Module
Long-wave IR (LWIR): 8–14 μm
Spectra L06CN is a coin-sized 640×512/12 μm uncooled LWIR radiometric core — 25.4×25.4×15.7 mm, 15 g, 0.65 W, NETD ≤25 mK — with USB2.0/DVP/BT.656/BT.1120/LVDS output, full-frame temperature measurement and Android/Linux/Windows SDK.
Spectra L06CN packs a 640×512/12 μm wafer-level uncooled detector, high-performance signal processing and image algorithms into a coin-sized 25.4×25.4×15.7 mm core of just 15 g and 0.65 W. Industry-standard interfaces with RAW/YUV data output make OEM integration straightforward, and a full athermal lens lineup covers more scenarios. Full-frame, regional, spot and isotherm temperature measurement with ±2 °C or ±2% accuracy (whichever is greater), plus Android/Linux/Windows SDKs — ideal for integrators who chase miniaturization, low power and high cost-performance.
| Sensitive Material | Uncooled vanadium oxide (VOx) |
| Package | Wafer-level package |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| Typical NETD | ≤25mK @ F1.0/25℃ |
| Digital Frame Rate | 25Hz/30Hz |
| Boot-up Time | ≤6 s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/TMP |
| Video Output Modes | DVP8/DVP16/BT.656/BT.1120/LVDS/USB2.0 |
| Image Display | Black-hot / white-hot / pseudo-color (10 palettes) |
| Image Algorithms | NUC, 3DNR, DNS, DRC, EE |
| Measurement Range | −20°C~+150°C, 0°C~+550°C |
| Accuracy | ±2°C or ±2% of reading (whichever is greater) @ 23°C±3°C, at 5 m (4.8~19 mm lenses) / 10 m (25/35 mm lenses) |
| Regional Measurement | Arbitrary region with max / min / average output |
| Spot Measurement | Supported |
| Isotherm | Supported |
| Full-frame Measurement | Temperature matrix output |
| SDK | Android / Linux / Windows versions; video stream parsing and gray-to-temperature conversion |
| Measurement Operating Temp. | -10°C ~ +50°C |
| Standard Connector | 50-pin HRS DF40C-50DP-0.4V(51), male |
| Communication | TTL-232 / USB2.0 |
| Expansion Components | USB2.0 / USB3.0 / VPC / USB2.0&VPC / GMSL expansion boards |
| Operating Voltage Range | DC 4.5~5.5V |
| Typical Power | 0.65W @ 4.5V (23±3℃) |
| Dimensions (mm) | ≤25.4×25.4×15.7 (excl. lens) |
| Weight | 15 g |
| Operating Temp. | -40°C ~ +70°C |
| Storage Temp. | -45°C ~ +85°C |
| Humidity | 5%–95%, non-condensing |
| Vibration | Random vibration 5.35 grms, 3 axes |
| Shock | Half-sine 40 g / 11 ms, 3 axes 6 directions |
| Protection | Lens front element IP67 |
| Certification | RoHS 2.0 / REACH |
| 4.8 mm fixed | FOV 90°×72.5° · IFOV 2.45 mrad DRI (est.) 350/120/60 m |
| 7 mm fixed | FOV 62°×49.6° · IFOV 1.69 mrad DRI (est.) 500/170/85 m |
| 9.1 mm fixed | FOV 48.3°×38.6° · IFOV 1.32 mrad DRI (est.) 640/215/105 m |
| 13 mm fixed | FOV 33.9°×27° · IFOV 0.92 mrad DRI (est.) 920/310/150 m |
| 19 mm fixed | FOV 22.7°×18.3° · IFOV 0.63 mrad DRI (est.) 1300/450/220 m |
| 25 mm fixed | FOV 17.5°×14.0° · IFOV 0.48 mrad DRI (est.) 1750/590/290 m |
| 35 mm fixed | FOV 12.5°×10.0° · IFOV 0.34 mrad DRI (est.) 2450/830/410 m |
| 50 mm fixed | FOV 8.8°×7.0° · IFOV 0.24 mrad DRI (est.) 3500/1190/580 m |
| 70 mm fixed | FOV 6.3°×5.0° · IFOV 0.17 mrad DRI (est.) 4900/1660/810 m |
Specifications subject to change without notice. All lenses are athermal fixed-focus. Accuracy conditions: 23 °C ± 3 °C, at 5 m (4.8/7/9.1/13/19 mm lenses) or 10 m (25/35 mm lenses). D/R/I: estimated detection / recognition / identification range (m), Johnson criteria at 50% probability, standard human target 1.7 m × 0.5 m; actual range varies with scene and target.
