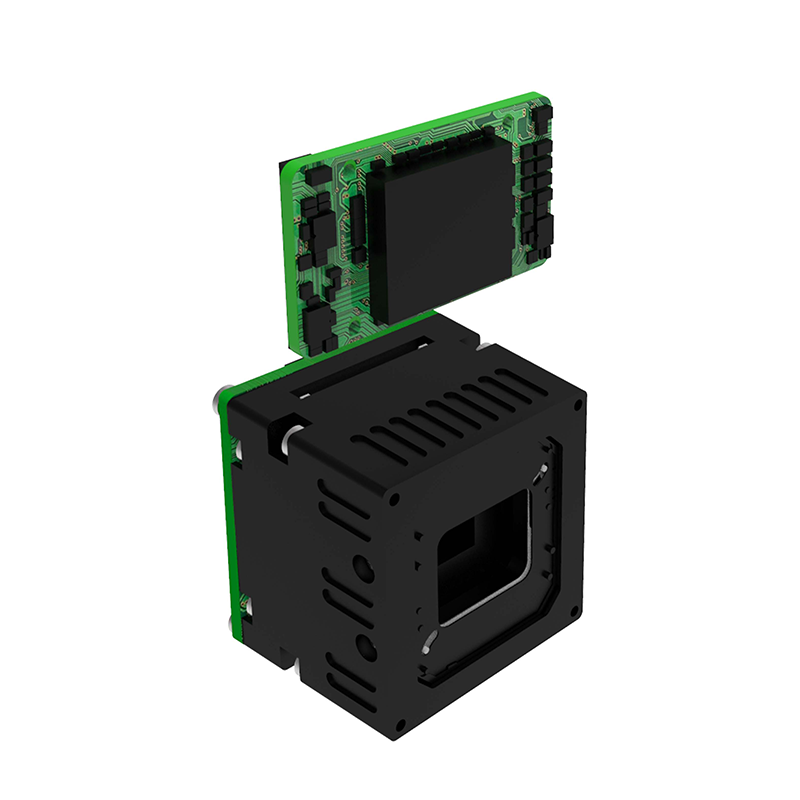

The FUSION LV1225A is the high-resolution flagship of the single-chip dual-band series, offering up to 1280×1024 LWIR combined with 2560×1440 visible light from a single 35×35 mm module. Two detector configurations allow optimization for either infrared or visible resolution priority, with CML or MIPI interface selection.

Configuration Options

Option 1 — Visible Priority:

  • IR: 1080×1024 @ 12 μm
  • Visible: 2560×1920 (approximately 5 MP)

Option 2 — IR Priority:

  • IR: 1280×1024 @ 12 μm (maximum IR resolution)
  • Visible: 2560×1440 (QHD)

Both configurations available with CML or MIPI video interface.

Key Features

  • Highest IR resolution single-chip dual-band — 1280×1024 LWIR option
  • Two configuration variants — optimize for IR or visible resolution
  • CML or MIPI — flexibility for SoC and FPGA platforms
  • 35×35 mm — standard compact board format
  • DC 5V — portable and UAV power compatible

Typical Applications

Professional UAV dual-band payloads, advanced EO/IR handheld systems, airborne reconnaissance pods requiring high-resolution dual-channel imagery, and next-generation compact multi-band turret cores.
