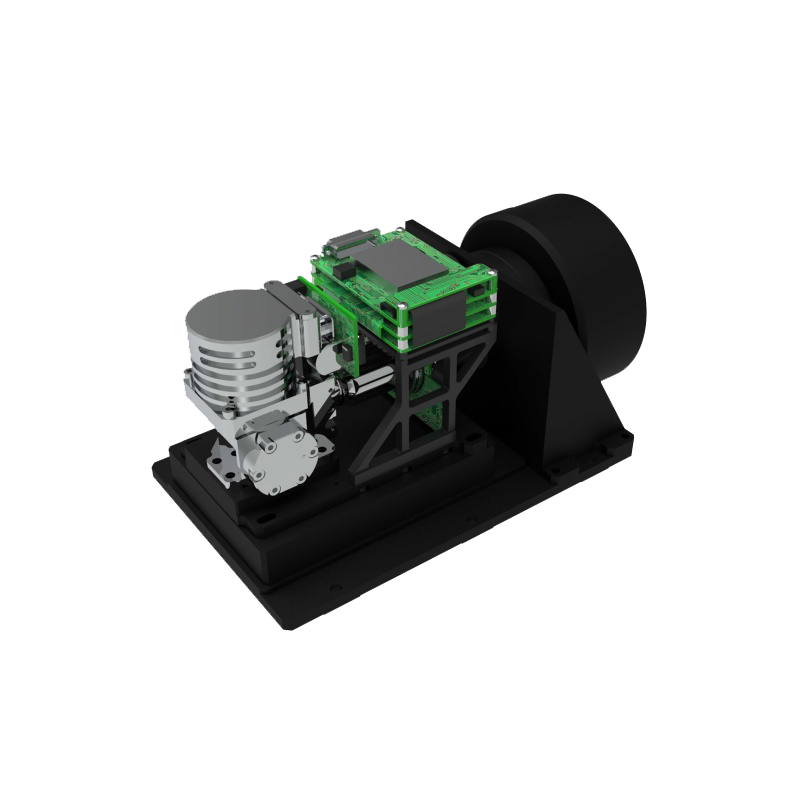

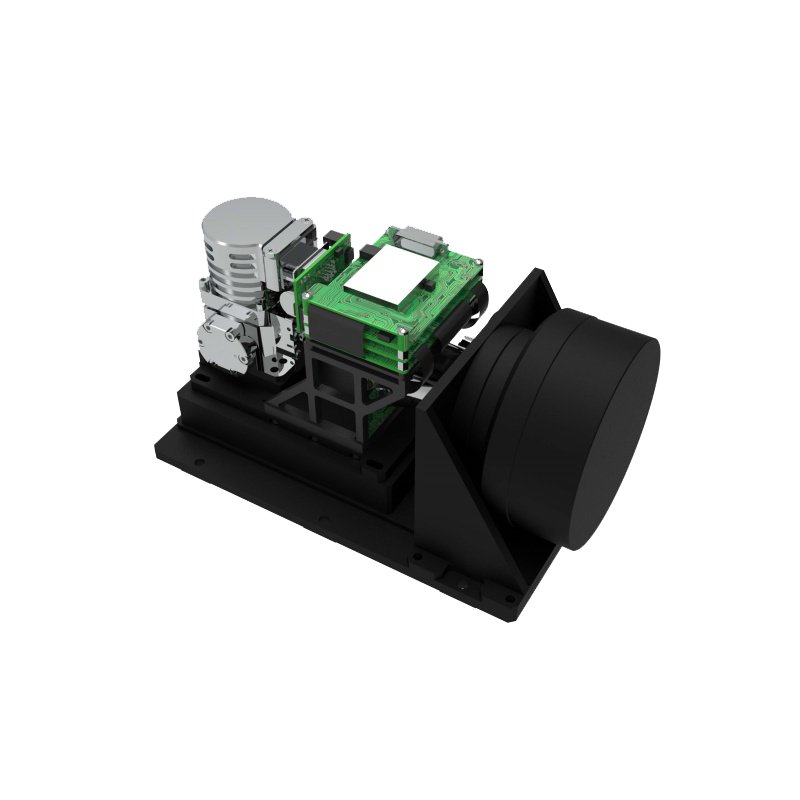

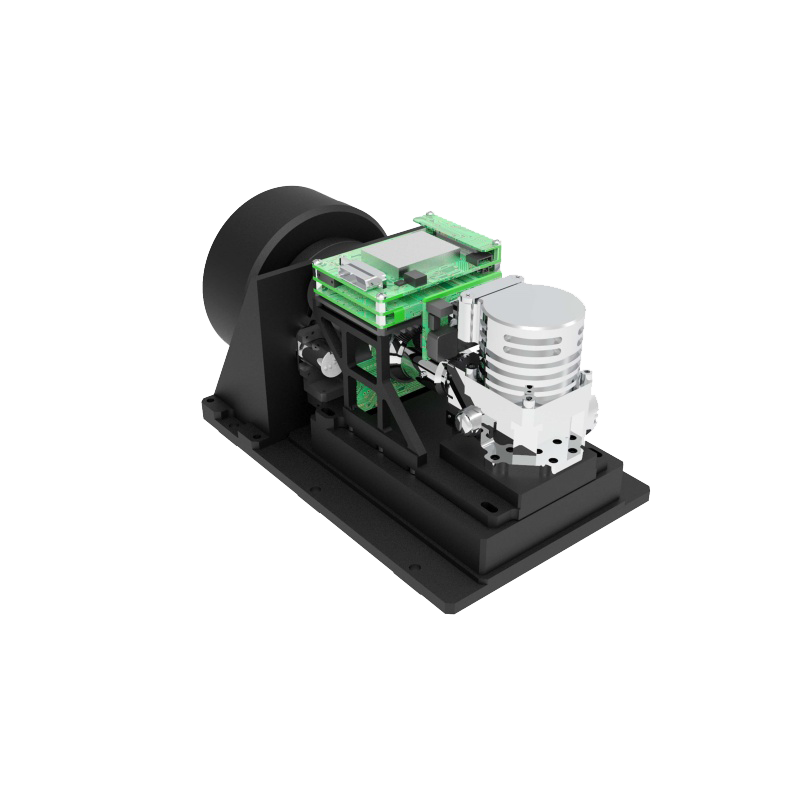

The SPECTRA M12 delivers 1280×1024 cooled mid-wave infrared imaging with choice of 10 μm or 15 μm pixel pitch detectors and three video output interface options: Optical Module, SDI, and CameraLink. CAN bus communication enables reliable integration into vehicle and platform networks.

Key Features

  • Highest resolution cooled MWIR — 1280×1024 at 10 or 15 μm pixel pitch
  • Three interface options — Optical Module, SDI, or CameraLink to suit your system architecture
  • CAN communication — rugged, noise-tolerant protocol for vehicle system integration
  • Compact form factor — 168×68×105 mm for integration into mid-sized EO/IR turrets and gimbals

Typical Applications

Long-range reconnaissance systems, fire control imaging, airborne EO/IR turrets, border surveillance towers, and naval deck-mounted EO systems.

In a layered low-altitude security system, this imaging module can provide visual or thermal confirmation after wide-area radar detection. For the complementary sensing layer, see CR-RD11 Series — X-Band Long-Range Phased Array Radar.
