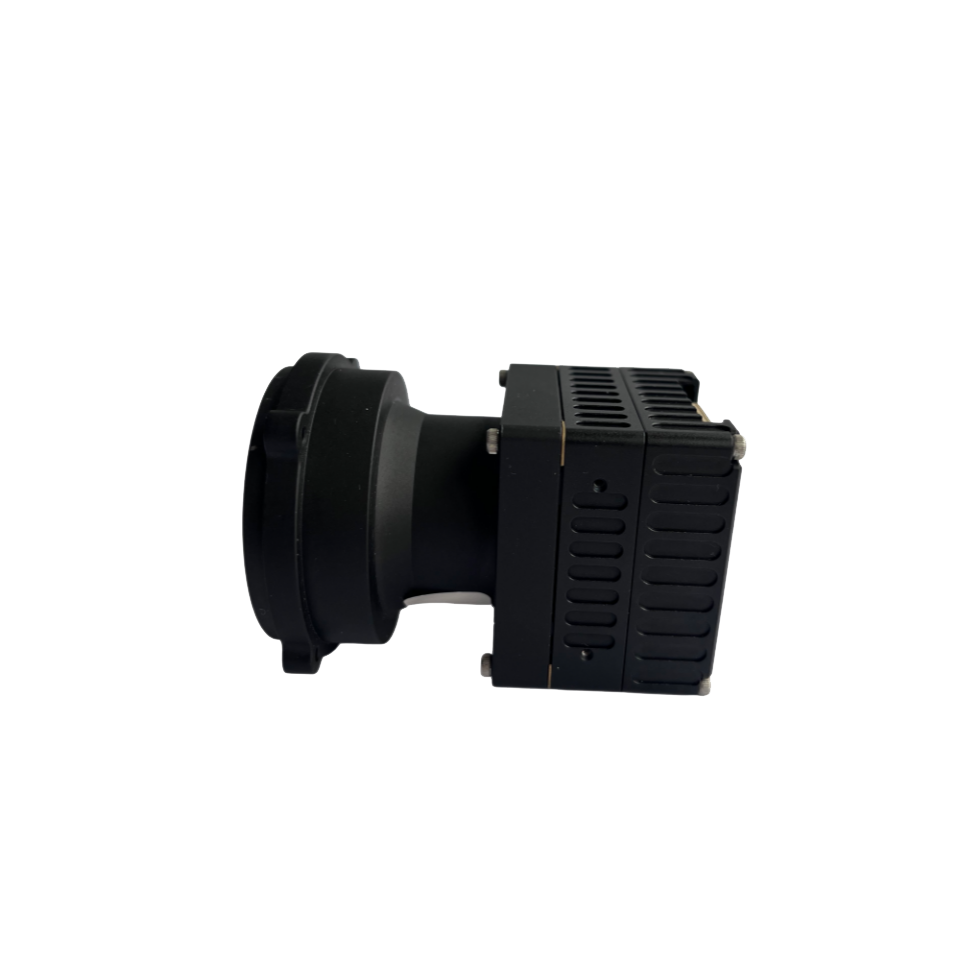

The SPECTRA L12 Series delivers 1280×1024 long-wave infrared imaging in an industry-standard 35×35 mm board format. Four distinct variants cover the full range of digital interface requirements: MIPI, CameraLink, BT1120, and CML — enabling drop-in integration with virtually any SoC or FPGA-based imaging platform.
Variant Selection Guide
| Variant | Interface | Communication | Best For |
|---|---|---|---|
| L12-MP | MIPI | RS422 | SoC-based platforms, mobile |
| L12-CL | CameraLink | RS422 | Frame grabber systems |
| L12-BT | BT1120 | RS232 | Broadcast / video equipment |
| L12-CM | CML | RS422 | High-speed serial systems |
Key Features
- Ultra-compact 35×35 mm — fits in the tightest payload envelopes
- Four interface variants — one product family covers all digital architectures
- No cooling required — immediate-on with no warmup time
- Low power, DC 12V — compatible with standard payload power rails
Typical Applications
UAV EO/IR turret cores, portable thermal cameras, security and surveillance systems, perimeter detection sensors, and handheld thermal devices.
